Energy Technologies and Siting Considerations: Electricity

Introduction

America’s counties are home to a wide variety of natural primary sources of energy. A diverse portfolio of electrical energy production is essential to America’s leadership in every field from health care to advanced manufacturing to artificial intelligence. Counties today are supporting the build-out of electrical infrastructure that will energize the nation for generations to come. This primer presents the basics of electricity consumption, generation, transmission and storage. For more county insights on specific energy topics and technologies, visit NACo’s Energizing Counties Resource Hub.

Energy

Energy is the capacity to do work. Energy exists in nature in various forms and is constantly converted from one form to another. Moving or spinning objects have mechanical energy. Chemical energy is stored in the chemical bonds of substances which, when broken, release thermal energy. Electrical energy powers our homes, our businesses and the demands and comforts of modern life.

Electricity and Key Terms

Electrical energy, or electricity, is the movement of electrons. Electrons move through conductors, or wires, similar to how water flows through a pipe.

• Current is the rate of flow of electrons (measured in amperes, A)
• Voltage is the pressure pushing it through (measured in volts, V)
• Power is the rate of flow of energy which increases with more voltage or more current (measured in watts, W)

Electricity: Common Sources and Uses

The total amount of power over time is known simply as energy (measured in watthours, Wh). Like leaks in a pipe, energy can be lost along the way.

Electrons flow through a wire in one of two ways: in a straight line (direct current, or DC) or switching directions constantly in a sine wave (alternating current, or AC). DC and AC power can be converted to one another depending on the end use, using an inverter (DC to AC) or rectifier (AC to DC).

DC power, generated from batteries and solar panels, is used for powering small appliances and electronics. AC power, generated from most types of power plants, can travel long distances with minimal losses and is generally used to supply power to homes and larger appliances.

DC travels in two wires while AC travels in two wires (single-phase) for residential use or three wires (three-phase), for higher efficiency in commercial or industrial applications. This is relevant for county leaders and planners in considering the infrastructure needs of projects sited within their region.

Electricity Consumption

Anything that consumes electricity is called an electric load. Some loads like washing machines are intermittent, while others like refrigerators are continuous. Continuous load is referred to as base load.

Power and energy are typically measured in the thousands. One thousand watts is a kilowatt (kW); one thousand kW is a megawatt (MW); one thousand MW is a gigawatt (GW) and so on. The amount of consumption ranges from a few Wh to charge our phones at home to several MWh to operate a concrete mixing facility to several GWh for operating a data center or a modern city.

Electricity Generation

Electricity is most commonly generated by rotating a magnet or magnetic element (rotor) inside a coil of stationary conductors (stator). Rotation is accomplished by using a turbine, a mechanical device that is turned by the flow of fluid like wind, water, steam or the combustion of gases.

Coal, oil, nuclear, natural gas and geothermal systems all generate steam, which turns the turbine. Wind, hydro and tidal power systems use wind, water and tides to directly turn the turbine, not requiring any conversion. Solar is the outlier and does not visibly turn anything. Solar panels use the energy intrinsic to light to move electrons through a process called photovoltaics (PV).

Conventional energy systems are powered by non-renewable fossil fuels like coal, natural gas and oil. Since the fuel can be extracted and stored, energy can be generated on demand; however, extracting, storing, transporting and burning them require large scale use and result in by-products that require responsible management. Non-conventional energy systems are powered by renewable sources like water, wind, solar and ground sourced heat. Because they produce negligible harmful by-products, they are referred to as “clean energy” systems. These sources are unlimited but can be intermittent and require additional planning for integration with the current electric grid.

Other fuel sources do not neatly fall into conventional or non-conventional systems. Nuclear energy uses a depletable source (Uranium), but generates a tremendous amount of power from a very small amount of fuel. Nuclear energy is very efficient with limited by-products in the energy generation process; however, the spent fuel creates waste that requires very careful mitigation measures. Renewable natural gas uses biogas instead of fossil natural gas. Biogas comes from burning waste from industries like landfills, farms, post-disaster debris and other waste products.

Energy Transmission

The electric grid is the network of wires that connects power generation sources to electric loads. The strength of this network and proximity to users is a deciding factor in determining where new projects are located. Increasing electricity consumption creates strain on our current grid.

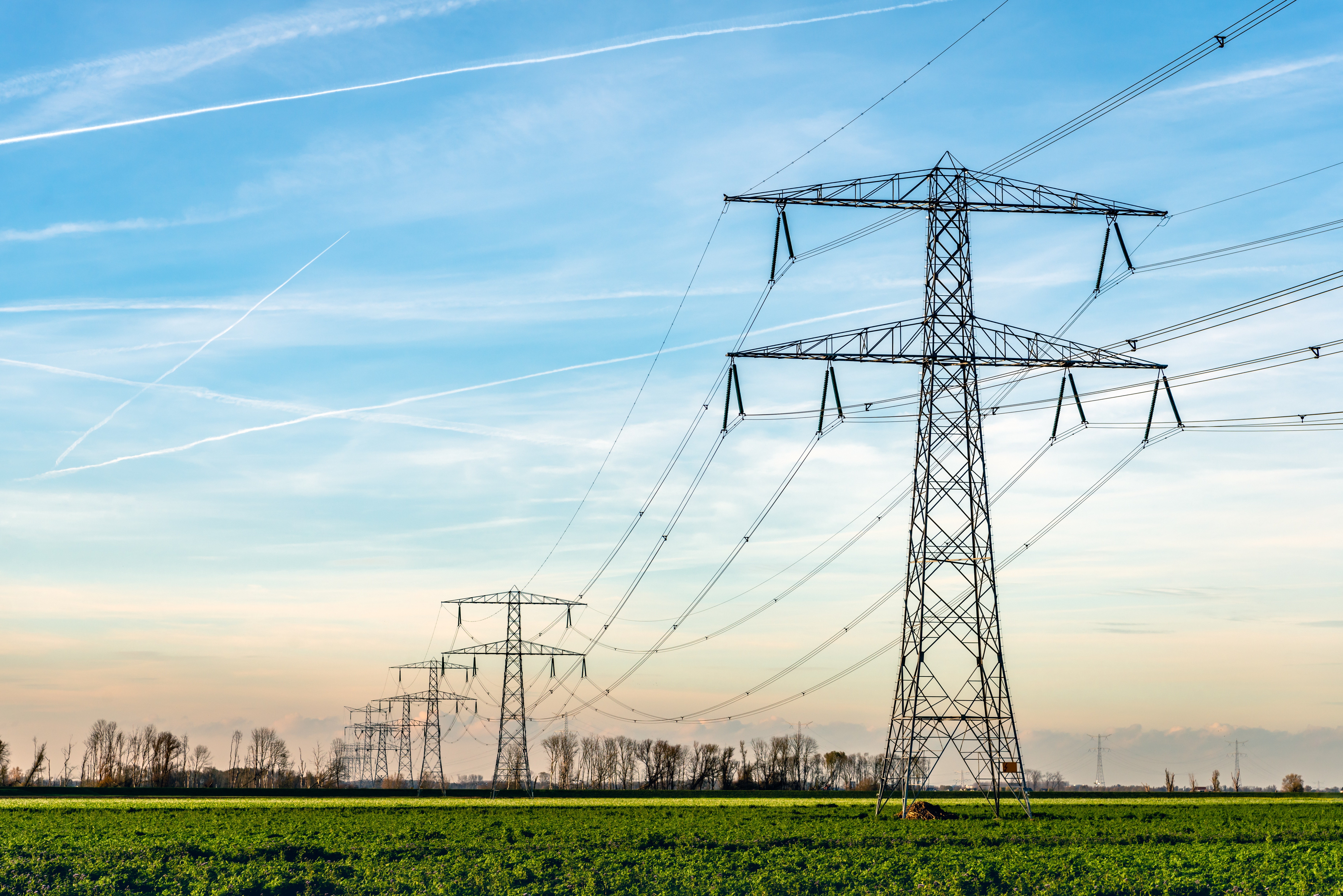

From the power plant, three-phase AC power is stepped up to very high voltage, using transformers, for travel along transmission lines – much like high-speed travel on a highway. Think of transmission substations as offramps to slower roads; this is where power is diverted to heavy industry or routed down to distribution substations. Again using transformers, substations step down the voltage for safe distribution to local communities and consumers.

The conventional grid was designed around conventional energy systems, where generators are located close to the fuel source. Cities and industries tend to be located around the transmission system, while rural areas are serviced by secondary lines. Large-scale non-conventional systems like hydro, utility scale wind and solar are designed to integrate with the transmission system the same way as conventional systems.

The scalability of some energy systems, such as wind, solar, natural gas and nuclear, allows for locating the generators closer to where the power is consumed and either interconnect to the grid or be used in a closed system. These Distributed Energy Resource (DER) systems can range in size from a small residential rooftop solar PV system to a large wind turbine or combined-heat power plant powering a factory or community. DER systems can be combined with on-site energy storage to form microgrids, that can independently power local loads during power outages caused by natural disasters, providing resilience.

Electricity Storage

The ability to store electricity offers significant opportunities to optimize our current electric grid. Storage allows for power generation at any time – regardless of resource availability or demand – and consumption as needed. Recent advancements in Battery Energy Storage Systems (BESS) have made it realistic to deploy storage at the scale needed to support modern demand. Batteries are essentially packs of cells that store charge in the form of chemical energy and can discharge it as electrical energy when connected to a load. Systems are sized to match the load by connecting multiple cells together. System sizes range from a wall-mounted 13 kW unit that can power a house for several hours to MW systems in shipping container-sized units that can power communities for a few days during a storm.


Energized Counties

A smart grid that integrates all the above technologies can provide reliable, low-cost power to all consumers. These technologies are advancing at a rapid pace and counties are at the forefront of enabling responsible deployment. By staying up-to-date on new technologies, considering local needs and conditions and fostering collaboration, counties can help build a resilient, efficient and sustainable energy system that benefits all communities.

Frequently Asked Questions

What influences the location of generators in a county?
Resource availability is the primary factor for siting energy projects. Conventional generators like coal and natural gas are located close to mines or existing pipelines. Non-conventional generators like wind, solar and hydro are located where the resources are stronger. Additional factors like access to grid infrastructure, local, state and federal incentives also affect location of energy generation projects.

How do grid upgrades affect county decisions?
In addition to land use permits from the county, adding new generators (or large consumers) often requires upgrades to the grid for interconnection. The cost and time for such upgrades can influence whether projects move forward. Understanding the local grid capacities and constraints aid in informed county decision-making.

How can counties determine the grid capacity in their communities?
Most utilities maintain hosting or grid capacity studies for the region they serve, some of which are available publicly. Counties can work directly with the utilities to understand not only existing capacity, but also future or potential projects.

Where can I find more specific information about different energy technologies?
This primer is the first in a series to include plain language explainers on different energy technologies and county considerations for siting projects, including Solar, Wind, Data Centers, Nuclear and more. These will be available on NACo’s Energizing Counties Resource Hub.
